Offline Notifications

What is an Offline Notification

An offline notification is a non-transactional notification. It's not triggered from within the monolith, but rather an offline job, like a dag.

Use Cases

• Data-intensive notifications
  • Offline notifications can use BigQuery which provides access to more data stores and can take more time without interfering with the user experience.
• Digest notifications
  • This includes any notification that needs to gather objects or events of interest over a time range.

Offline Notification Examples

Notification Config	DAG
unread_inbox_message_daily_digest	unread_inbox_message_daily_digest_notifications	TODO: Add email screenshot

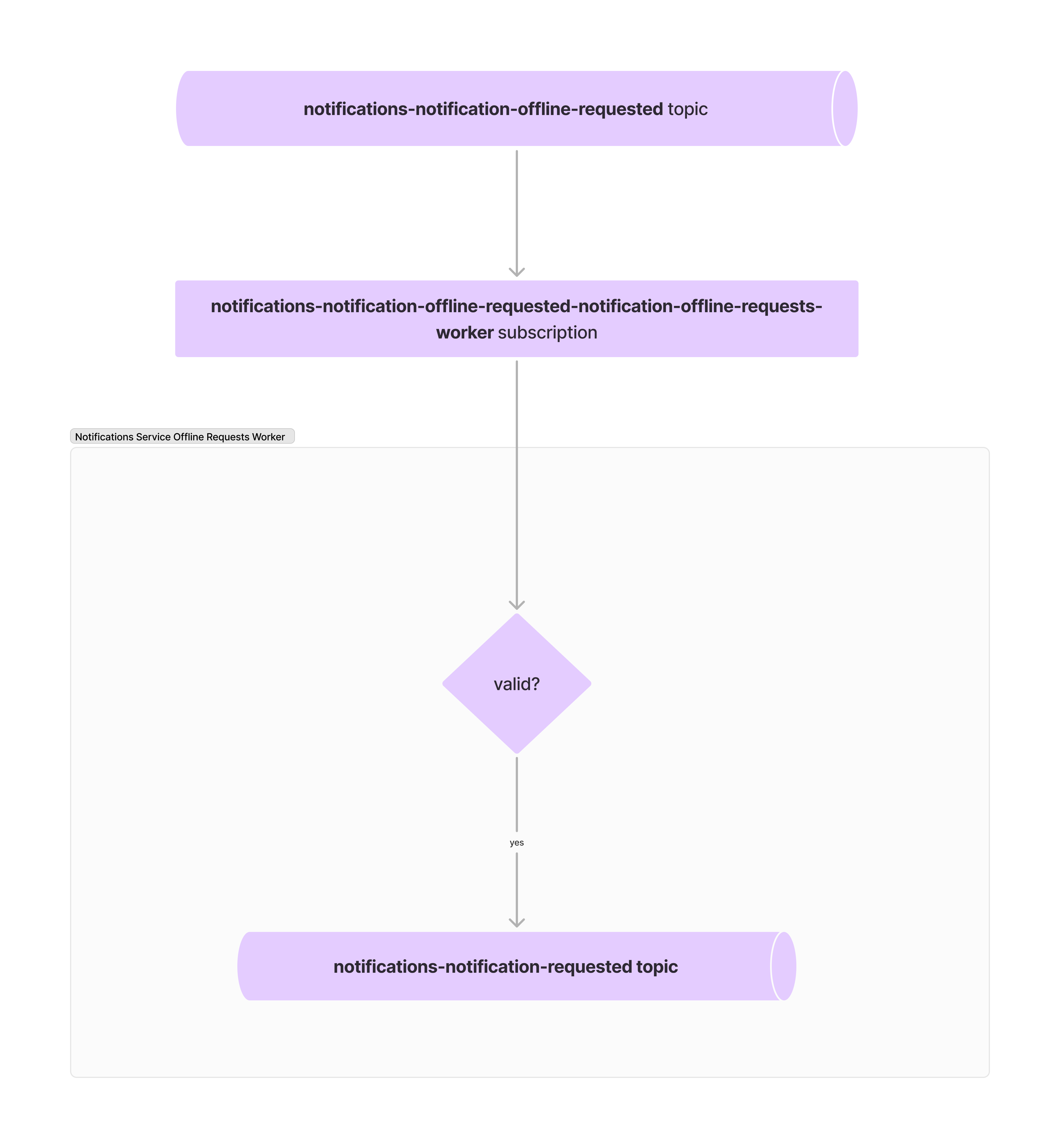

How does this work?

1. A JSON-formatted pub/sub message representing an offline notification request gets published to the notifications-notification-offline-requested topic
2. Our Notifications Service Offline Requests Worker processes messages from this topic via the notifications-notification-offline-requested-notification-offline-requests-worker subscription
3. The worker validates that the request is for an existing notification and includes the required attributes (as defined in the notification config)
4. The worker publishes this request to the notifications-notification-requested topic. At which point it gets merged into the queue of online notification requests

How can a message be published to the offline request topic?

A DAG can be used to publish JSON-formatted pub/sub messages to the notifications-notification-offline-requested topic. We're working on automating this, but for now the following steps and resources should suffice.

1. Create a table in the notifications_data_service BQ dataset that can temporarily store notification requests
2. Build a DAG consisting of three steps:
   • Gather and store all the data required for the offline notification in BQ
   • Create a JSON file in GCS with the gathered data
   • Publish each row of the GCS file to notifications-notification-offline-requested

Create a table in the notifications_data_service BQ dataset

Table Name	notification_name_notification_requests
Table Schema	TODO: See https://github.com/joinhandshake/terraform/pull/4289

Note: notification_name should match the name as defined by the notification's config file

The Notifications Team uses terraform to change our notifications_data_service dataset in BQ. Here's an example on how you can add a new BQ table to the notifications_data_service dataset. Notification BQ table schemas are defined here.

Build a DAG

Gather Data

Example Operator	Example Query

This step will be custom to the offline notification being created. The outcome should be that data gets populated in the notification_name_notification_requests BQ table.

Create a JSON File in GCS

Example Operator	Reusable Query

The reusable query above should be all that's needed to bundle your data into a GCS JSON file. Information about expected query params can be found below:

Param		Description
notification_name	Required	The name of the requested notification.
notification_version	Required	The version of the requested notification.
project_id	Required	Set as Cloud().gcp_project_id. Allows the dag to run in multiple GCP projects and store data in the appropriate folder for that project.
include_attributes	Required	Set as True if BQ table has an attributes field, otherwise set as False
include_metadata	Required	Set as True if BQ table has a metadata field, otherwise set as False
include_email_address	Required	Set as True if BQ table has an email_address field, otherwise set as False

Publish JSON File Contents

Example Operator

This operator can be copy/pasted, but update the job_name to be specific to your notification. For instance, in the dag example it is publish_unread_inbox_message_daily_digest_to_pubsub
